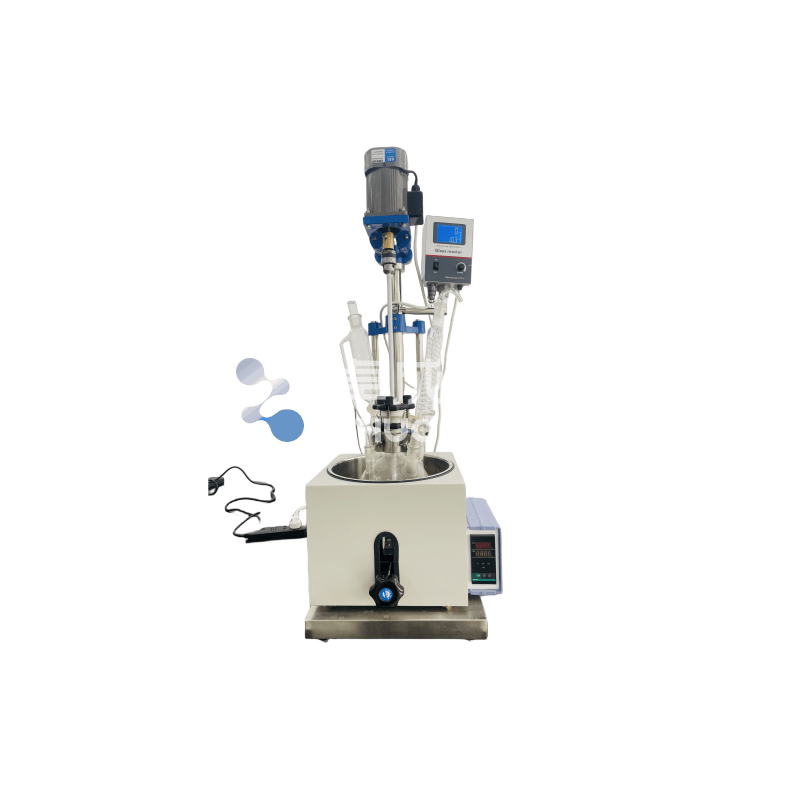

A single-layer glass reaction vessel is a versatile chemical laboratory and production equipment that combines various functions, such as heating, cooling, stirring, vacuum, reflux, and distillation, using borosilicate glass as the primary reaction container.
A single-layer glass reaction vessel is a versatile chemical laboratory and production equipment that combines various functions, such as heating, cooling, stirring, vacuum, reflux, and distillation, using borosilicate glass as the primary reaction container.

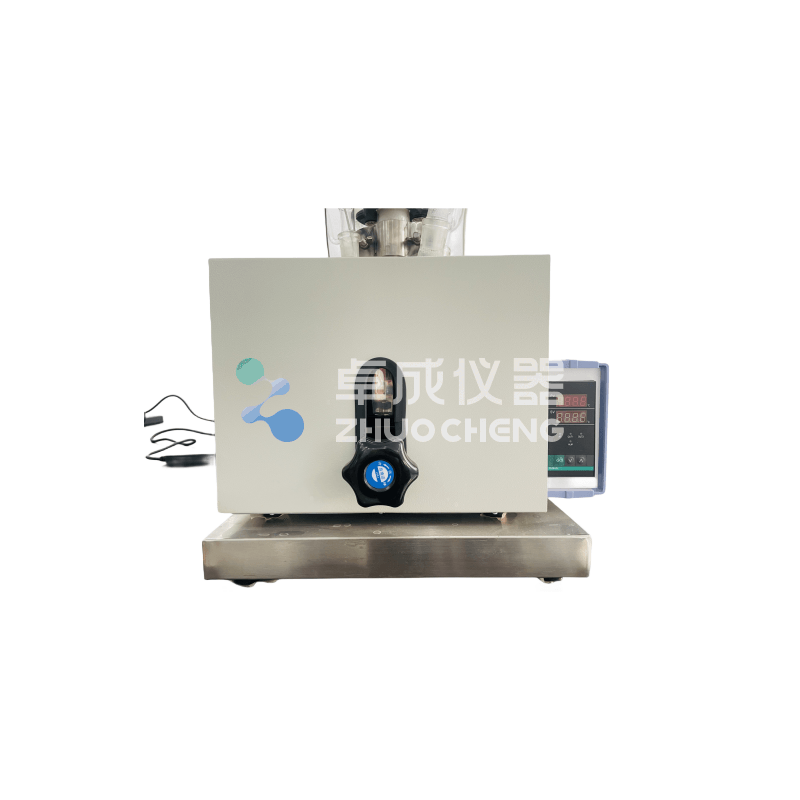

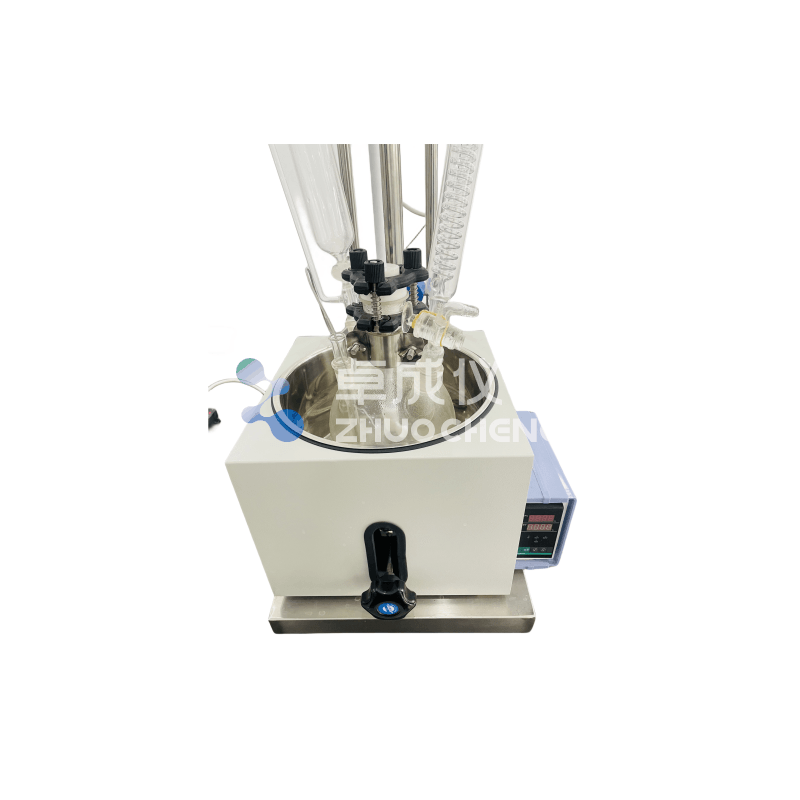

Unlike double-glazed reaction vessels, single-layer vessels do not have an integrated jacket layer for indirect heat exchange. Their temperature control typically relies on external heat sources (such as electric heaters, water baths, or oil baths) directly wrapping or immersing the vessel body, or through heat exchange via tubes within the vessel. Due to its fully transparent visibility, corrosion resistance, ease of operation, and cost-effectiveness, the single-layer glass reaction vessel has become an indispensable basic equipment in laboratory research, pilot exploration, and pilot production, earning the nickname of the “transparent eye” of chemists.
Technical parameter table of single-layer glass reactor of Zhuoinstrument | ||||||
product model | DF-10L | DF-20L | DF-30L | DF-50L | DF-100L | D F-200L |
voltage | AC220V 16A | AC380V | ||||

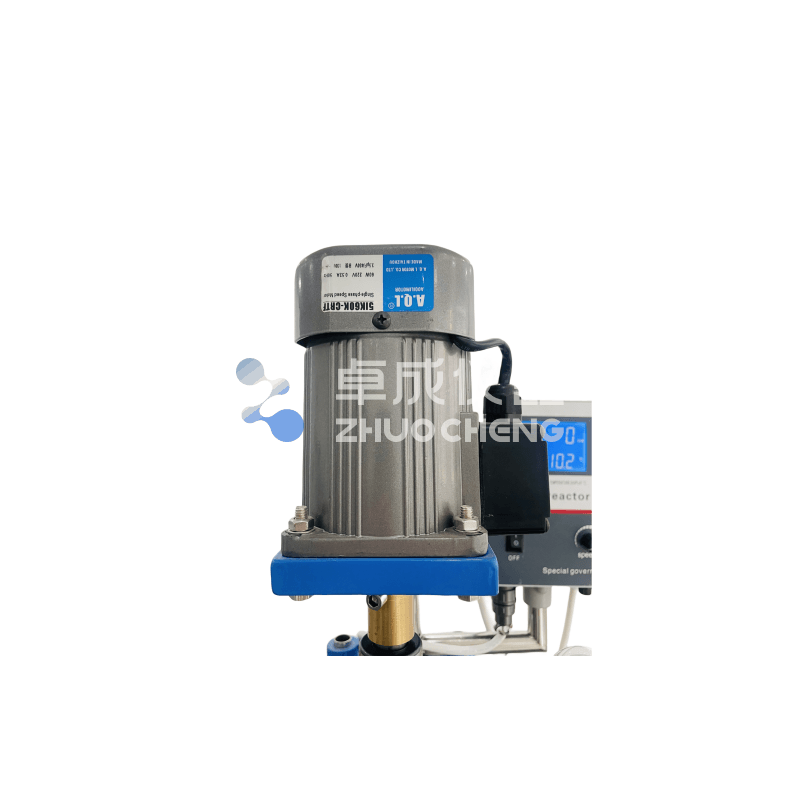

power of agitator | 120W 1 / 3 deceleration | 250W 1 / 3 deceleration | 400W 1 / 3 deceleration | |||
speed | 0~600rpm frequency regulation | |||||
heating power (W) | 3500 | 4000 | 4500 | 5000 | 7500 | 10000 |

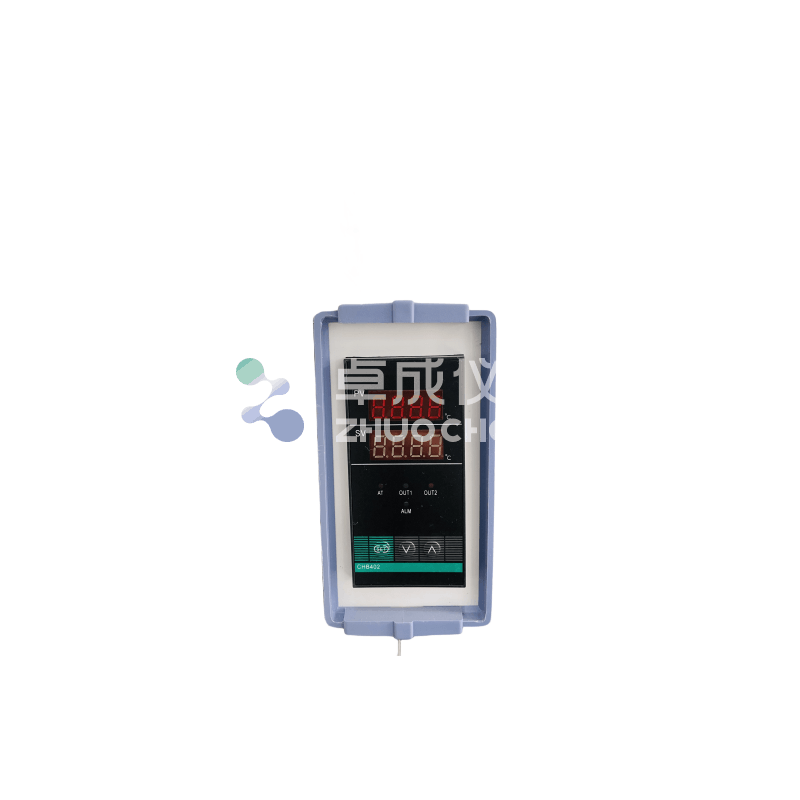

Temperature control mode | PID intelligent temperature control | |||||

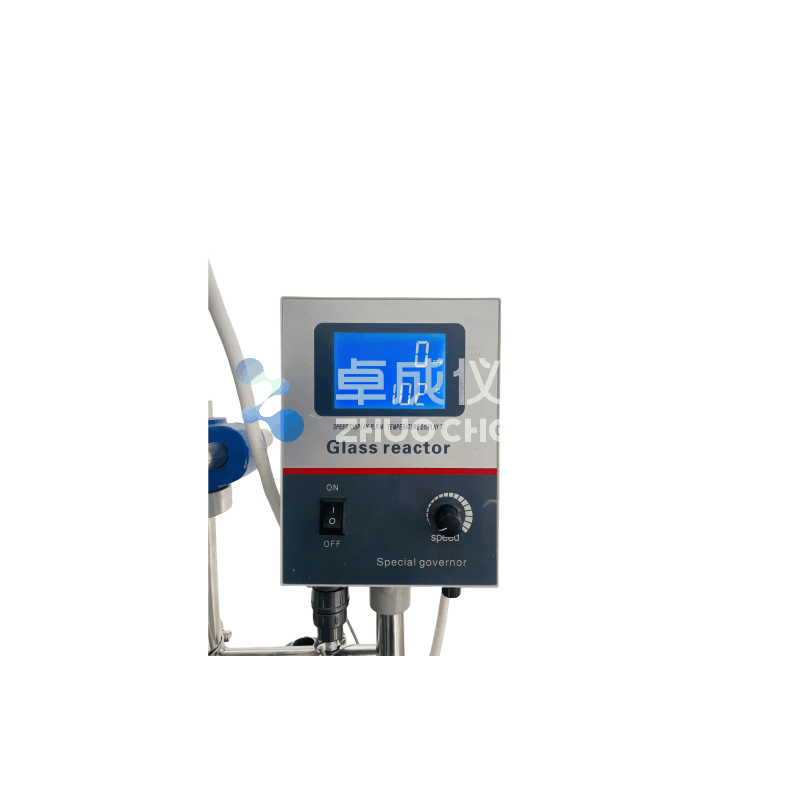

display mode | Temperature and rotational speed digital double display | |||||
Temperature control range is (℃) | Room temperature ~400 | |||||
The temperature of (℃) is recommended | ≤220 | |||||
temperature fluctuation (℃) | ±1 | |||||
temperature resolution (℃) | 1 | |||||
Type of reaction bottle | Seven ball bottles | Bucrel cap body flange reaction kettle | ||||
Other configuration | PT 100 sensor / piston exhaust valve / snake condenser + reflux / constant pressure drop plus funnel / tetrafluoride mechanical seal / solid feeding port / bottom tetrafluoride + fluorine glue sealed feeding valve | |||||
Mixer paddle / blade diameter | 15mm/200mm | 15mm/200mm | 15mm/200mm | 15mm/200mm | 17mm/240mm | 20mm/260mm |
Size of the inner bladder (mm) | 350*250 | 450*250 | 500*300 | 500*300 | 600*600 | 800*800 |
outline dimension (mm) | 650*550*1850 | 700*550*1850 | 750*600*1900 | 750*600*2000 | 800*700*2900 | 1000*900*3200 |
